jDiameter

jDiameter

Following is example of Diameter client which could be used for testing.


1. (OPTIONAL) Install IDE NetBeans

2. Download and install Mobicent RestComm jDiameter

git clone https://github.com/RestComm/jdiameter.git
cd jdiameter/
mvn clean install

3. (OPTIONAL) Import jDiameter and jdiameter/examples/guide1 project into NetBeans

4. Work with jdiameter/examples/guide1 and modify the ExampleClient.java and ExampleServer.java, attached bellow are modified files.

ExampleClient.java

...
private static final int commandCode = 316;
private static final long applicationID = 16777251;
...
...
public static byte[] hexStringToByteArray(String s) {
int len = s.length();
byte[] data = new byte[len / 2];
for (int i = 0; i < len; i += 2) {
data[i / 2] = (byte) ((Character.digit(s.charAt(i), 16) << 4) + Character.digit(s.charAt(i+1), 16));
}
return data;
}

private void sendNextRequest(int enumType) throws InternalException, IllegalDiameterStateException, RouteException, OverloadException {
Request r = this.session.createRequest(commandCode, this.authAppId, realmName, serverURI);
// here we have all except our custom avps

// example how to remove AVP
AvpSet requestAvps = r.getAvps();
requestAvps.removeAvp(293);

// example how to add AVP IMSI
byte[] b = hexStringToByteArray("31313131313131313131313131313131");
requestAvps.addAvp(1, b, true, false);
// code , value , vendor, mandatory,protected,isUnsigned32
// (Enumerated)
Avp exchangeType = requestAvps.addAvp(exchangeTypeCode, (long) enumType, vendorID, true, false, true);

// code , value , vendor, mandatory,protected, isOctetString
Avp exchengeData = requestAvps.addAvp(exchangeDataCode, TO_SEND[toSendIndex++], vendorID, true, false, false);


// send
this.session.send(r, this);
dumpMessage(r,true); //dump info on console
}
...

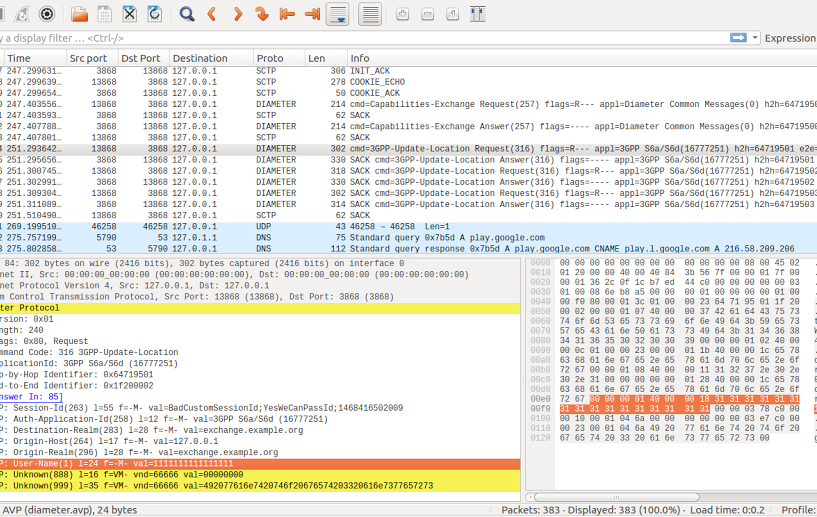

5. Run ExampleServer and ExampleClient. Example of generated traffic is bellow.
