jSS7

Following is example of SS7 (Sigtran) client which could be used for testing.


1. (OPTIONAL) Install NetBeans IDE


2. Download and install Mobicent RestComm jSS7

Instructions bellow, original instructions can be found here https://github.com/RestComm/jss7/wiki/Build-jSS7-from-Source

  • Clone jSS7 Repo : git clone https://github.com/RestComm/jss7.git
  • Download Dialogic dependencies from Dialogic website. This is required to build the hardware part of jSS7 to have support for Dialogic boards in case you can't use SIGTRAN directly : wget https://www.dialogic.com/files/DSI/developmentpackages/linux/dpklnx.Z
  • Unpack the contents of the Dialogic SS7 dependencies : tar --no-same-owner -zxvf dpklnx.Z
  • Install the Dialogic SS7 Java Dependency in your local maven repository : mvn install:install-file -DgroupId=com.vendor.dialogic -DartifactId=gctapi -Dversion=6.7.1 -Dpackaging=jar -Dfile=./JAVA/gctApi.jar
  • Download Sun JMX tools dependency used by the jSS7 simulator : wget http://www.datanucleus.org/downloads/maven2/com/sun/jdmk/jmxtools/1.2.1/jmxtools-1.2.1.jar
  • Install the Sun JMX Tools Dependency in your local maven repository : mvn install:install-file -DgroupId=com.sun.jdmk -DartifactId=jmxtools -Dversion=1.2.1 -Dpackaging=jar -Dfile=jmxtools-1.2.1.jar
  • Build jSS7 with maven : mvn clean install -Dmaven.test.skip=true


3. (OPTIONAL) Import jSS7 project into NetBeans


4. Work with simulatorcore example and modify it:

  • Create new package
    • package name: org.mobicents.protocols.ss7.tools.simulator.test
    • folder name: tools/simulator/core/src/main/java/org/mobicents/protocols/ss7/tools/simulator/test
  • Code example is attached bellow. The example demonstrates various ways how to send message, using jSS7 send functions on various protocol layers.

SctpClient.java

...
protected void initializeStack(IpChannelType ipChannelType) throws Exception {

        this.initSCTP(ipChannelType);

        // Initialize M3UA first
        this.initM3UA();

        // Initialize SCCP
        this.initSCCP();

        // Initialize TCAP
        this.initTCAP();

        // Initialize MAP
        this.initMAP();

        // FInally start ASP
        // Set 5: Finally start ASP
        this.clientM3UAMgmt.startAsp("ASP1");
    }

    private void initSCTP(IpChannelType ipChannelType) throws Exception {
        logger.debug("Initializing SCTP Stack ....");
        this.sctpManagement = new ManagementImpl("Client");
        this.sctpManagement.setSingleThread(true);
        this.sctpManagement.start();
        this.sctpManagement.setConnectDelay(10000);
        this.sctpManagement.removeAllResourses();

        // 1. Create SCTP Association
        sctpManagement.addAssociation(CLIENT_IP, CLIENT_PORT, SERVER_IP, SERVER_PORT, CLIENT_ASSOCIATION_NAME,
                ipChannelType, null);
        logger.debug("Initialized SCTP Stack ....");
    }

    private void initM3UA() throws Exception {
        logger.debug("Initializing M3UA Stack ....");
        this.clientM3UAMgmt = new M3UAManagementProxyImpl("Client");
        this.clientM3UAMgmt.setTransportManagement(this.sctpManagement);
        this.clientM3UAMgmt.start();
        this.clientM3UAMgmt.removeAllResourses();

        // m3ua as create rc <rc> <ras-name>
        RoutingContext rc = factory.createRoutingContext(new long[]{100l});
        TrafficModeType trafficModeType = factory.createTrafficModeType(TrafficModeType.Loadshare);
        this.clientM3UAMgmt.createAs("AS1", Functionality.AS, ExchangeType.SE, IPSPType.CLIENT, rc, trafficModeType, 1, null);

        // Step 2 : Create ASP
        this.clientM3UAMgmt.createAspFactory("ASP1", CLIENT_ASSOCIATION_NAME);

        // Step3 : Assign ASP to AS
        AspImpl asp = this.clientM3UAMgmt.assignAspToAs("AS1", "ASP1");

        // Step 4: Add Route. Remote point code is 2
        clientM3UAMgmt.addRoute(SERVER_SPC, -1, -1, "AS1");
        logger.debug("Initialized M3UA Stack ....");

    }

    private void initSCCP() throws Exception {
        logger.debug("Initializing SCCP Stack ....");
        this.sccpStack = new SccpStackImpl("MapLoadClientSccpStack");
        this.sccpStack.setMtp3UserPart(1, this.clientM3UAMgmt);

        this.sccpStack.start();
        this.sccpStack.removeAllResourses();

        this.sccpStack.getSccpResource().addRemoteSpc(0, SERVER_SPC, 0, 0);
        this.sccpStack.getSccpResource().addRemoteSsn(0, SERVER_SPC, SSN, 0, false);

        this.sccpStack.getRouter().addMtp3ServiceAccessPoint(1, 1, CLIENT_SPC, NETWORK_INDICATOR, 0);
        this.sccpStack.getRouter().addMtp3Destination(1, 1, SERVER_SPC, SERVER_SPC, 0, 255, 255);


        this.sccpProvider = this.sccpStack.getSccpProvider();


        this.sccpStack.getSccpResource().addRemoteSpc(1, SERVER_SPC, 0, 0);
        this.sccpStack.getSccpResource().addRemoteSsn(1, SERVER_SPC, SSN, 0, false);

        // SCCP routing table
        GlobalTitle gt = this.sccpProvider.getParameterFactory().createGlobalTitle("", 0, org.mobicents.protocols.ss7.indicator.NumberingPlan.ISDN_MOBILE, null, NatureOfAddress.INTERNATIONAL);

        this.sccpStack.getRouter().addRoutingAddress(1, this.sccpProvider.getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, gt, SERVER_SPC, 0));
        this.sccpStack.getRouter().addRoutingAddress(2, this.sccpProvider.getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_DPC_AND_SSN, gt, CLIENT_SPC, SSN));

        gt = this.sccpProvider.getParameterFactory().createGlobalTitle("*", 0, org.mobicents.protocols.ss7.indicator.NumberingPlan.ISDN_MOBILE, null, NatureOfAddress.INTERNATIONAL);
        SccpAddress pattern = this.sccpProvider.getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, gt, 0, 0);
        String mask = "K";
        ((RouterImpl) this.sccpStack.getRouter()).addRule(1, RuleType.SOLITARY, null, OriginationType.LOCAL, pattern, mask, 1, -1, null, 0);
        pattern = this.sccpProvider.getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, gt, 0, 0);
        mask = "R";
        ((RouterImpl) this.sccpStack.getRouter()).addRule(2, RuleType.SOLITARY, null, OriginationType.REMOTE, pattern, mask, 2, -1, null, 0);


        logger.debug("Initialized SCCP Stack ....");
    }

    private void initTCAP() throws Exception {
        logger.debug("Initializing TCAP Stack ....");
        this.tcapStack = new TCAPStackImplWrapper(this.sccpStack.getSccpProvider(), SSN);
        this.tcapStack.start();
        this.tcapStack.setDialogIdleTimeout(60000);
        this.tcapStack.setInvokeTimeout(30000);
        this.tcapStack.setMaxDialogs(2000);
        logger.debug("Initialized TCAP Stack ....");
    }

    private void initMAP() throws Exception {
        logger.debug("Initializing MAP Stack ....");
        // this.mapStack = new MAPStackImpl(this.sccpStack.getSccpProvider(),
        // SSN);
        this.mapStack = new MAPStackImpl("Simulator", this.sccpStack.getSccpProvider(), SSN);
        this.mapProvider = this.mapStack.getMAPProvider();

        this.mapProvider.addMAPDialogListener(this);
        //this.mapProvider.getMAPServiceSupplementary().addMAPServiceListener(this);

        this.mapProvider.getMAPServiceSupplementary().acivate();
        this.mapProvider.getMAPServiceMobility().acivate();

        this.mapStack.start();
        logger.debug("Initialized MAP Stack ....");
    }

.
.
.
.
.

try {
            client.initializeStack(ipChannelType);

            // Lets pause for 20 seconds so stacks are initialized properly
            Thread.sleep(20000);

            Mtp3TransferPrimitive mtp3TransferPrimitive = new Mtp3TransferPrimitive(3, 2, 0, 1, 2, 5, hexStringToByteArray("0980030e190b12060011041111111111110b1207001204111111111111186516480433119839490402035ea26c08a106020102020138"), RoutingLabelFormat.ITU);
            client.clientM3UAMgmt.sendMessage(mtp3TransferPrimitive);

            Thread.sleep(1000);
            GlobalTitle callingGT = client.sccpProvider.getParameterFactory().createGlobalTitle("100000000000", 0, org.mobicents.protocols.ss7.indicator.NumberingPlan.ISDN_MOBILE, null, NatureOfAddress.INTERNATIONAL);
            GlobalTitle calledGT = client.sccpProvider.getParameterFactory().createGlobalTitle("100000000000", 0, org.mobicents.protocols.ss7.indicator.NumberingPlan.ISDN_MOBILE, null, NatureOfAddress.INTERNATIONAL);
            SccpAddress callingParty = client.sccpStack.getSccpProvider().getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, callingGT, 1, 8);
            SccpAddress calledParty = client.sccpStack.getSccpProvider().getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, calledGT, 2, 8);
            SccpDataMessage sccpDataMessage;
            sccpDataMessage = client.sccpProvider.getMessageFactory().createDataMessageClass0(calledParty, callingParty, hexStringToByteArray("6516480433119839490402035ea26c08a106020102020138"), 0, true, null, null);
            client.sccpProvider.send(sccpDataMessage);

            Thread.sleep(1000);
            client.initiateUSSD();

            Thread.sleep(1000);
            callingGT = client.sccpProvider.getParameterFactory().createGlobalTitle("100000000000", 0, org.mobicents.protocols.ss7.indicator.NumberingPlan.ISDN_MOBILE, null, NatureOfAddress.INTERNATIONAL);
            calledGT = client.sccpProvider.getParameterFactory().createGlobalTitle("100000000000", 0, org.mobicents.protocols.ss7.indicator.NumberingPlan.ISDN_MOBILE, null, NatureOfAddress.INTERNATIONAL);


            callingParty = client.sccpStack.getSccpProvider().getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, callingGT, 1, 8);
            calledParty = client.sccpStack.getSccpProvider().getParameterFactory().createSccpAddress(RoutingIndicator.ROUTING_BASED_ON_GLOBAL_TITLE, calledGT, 2, 8);
            ISDNAddressString origReference = client.mapProvider.getMAPParameterFactory().createISDNAddressString(AddressNature.international_number, NumberingPlan.land_mobile, "11111111111");
            ISDNAddressString destReference = client.mapProvider.getMAPParameterFactory().createISDNAddressString(AddressNature.international_number, NumberingPlan.land_mobile, "111111111111111");
            ISDNAddressString gsmSCFAddress = client.mapProvider.getMAPParameterFactory().createISDNAddressString(AddressNature.international_number, NumberingPlan.land_mobile, "111111111111111");


            MAPProvider mapProvider = client.mapStack.getMAPProvider();

            MAPApplicationContextName acn = MAPApplicationContextName.anyTimeEnquiryContext;
            MAPApplicationContextVersion vers = MAPApplicationContextVersion.version3;
            MAPApplicationContext mapAppContext = MAPApplicationContext.getInstance(acn, vers);

            SubscriberIdentity subscriberIdentity;
            IMSI imsi = mapProvider.getMAPParameterFactory().createIMSI("11111111111111");
            subscriberIdentity = mapProvider.getMAPParameterFactory().createSubscriberIdentity(imsi);

            RequestedInfo requestedInfo = mapProvider.getMAPParameterFactory().createRequestedInfo(
                true,
                true, null,
                true,
                DomainType.csDomain,
                true,
                true,
                true);


            try {
                MAPDialogMobility curDialog = mapProvider.getMAPServiceMobility().createNewDialog(mapAppContext, callingParty, origReference, calledParty, destReference);

                curDialog.addAnyTimeInterrogationRequest(subscriberIdentity, requestedInfo, gsmSCFAddress, null);
                curDialog.send();

            } catch (MAPException ex) {
                ex.printStackTrace();
            }



        } catch (Exception e) {
            e.printStackTrace();
        }
        ...

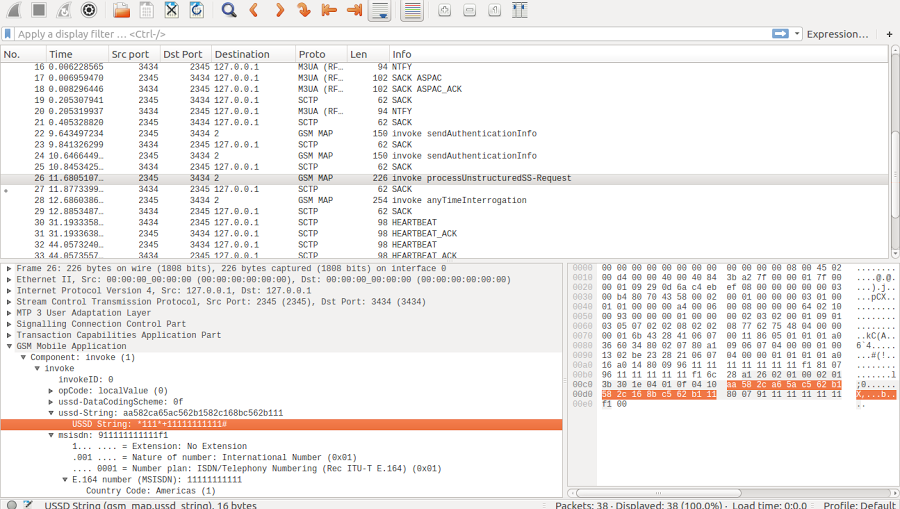

5. Run SctpServer and SctpClient. Example of generated traffic is bellow.
